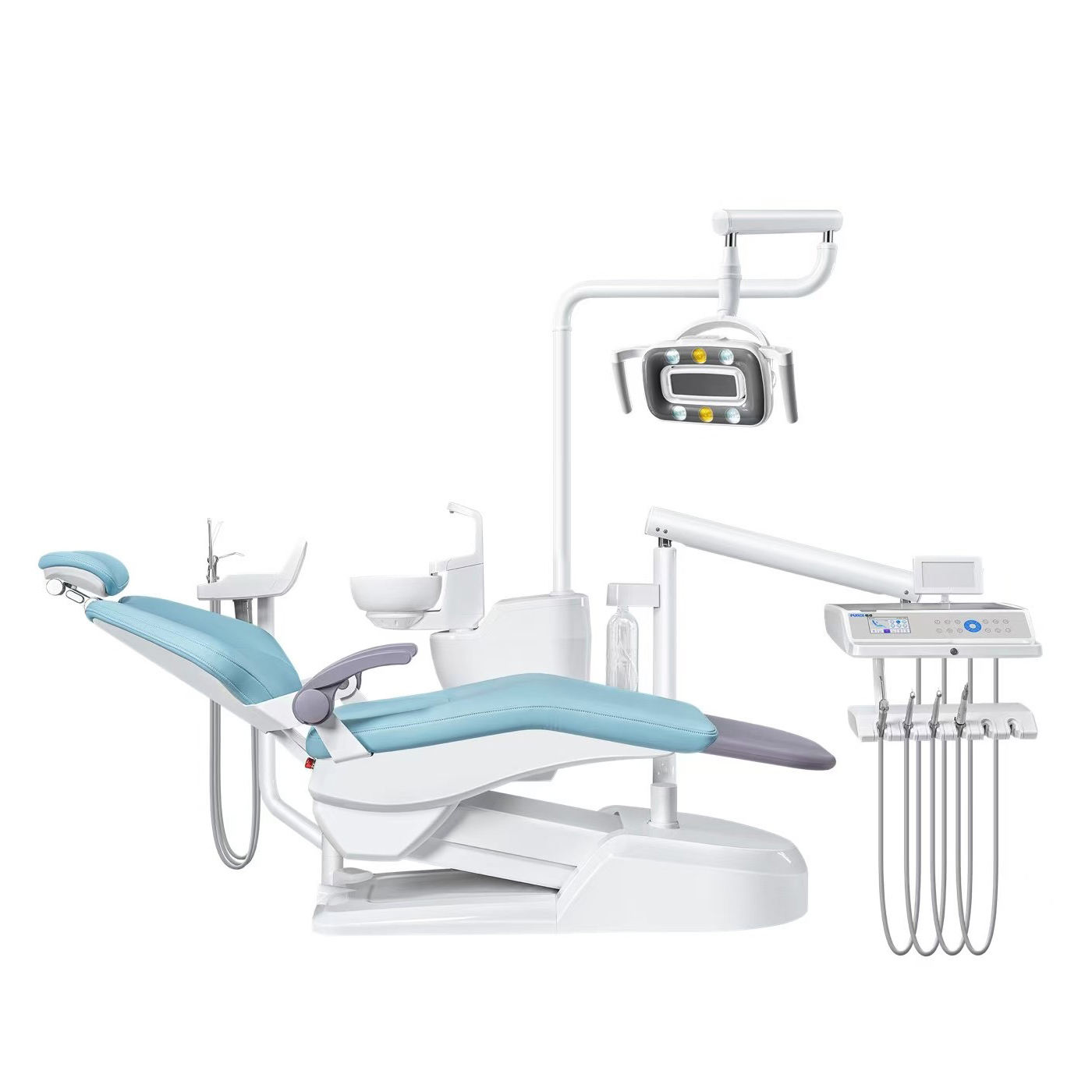

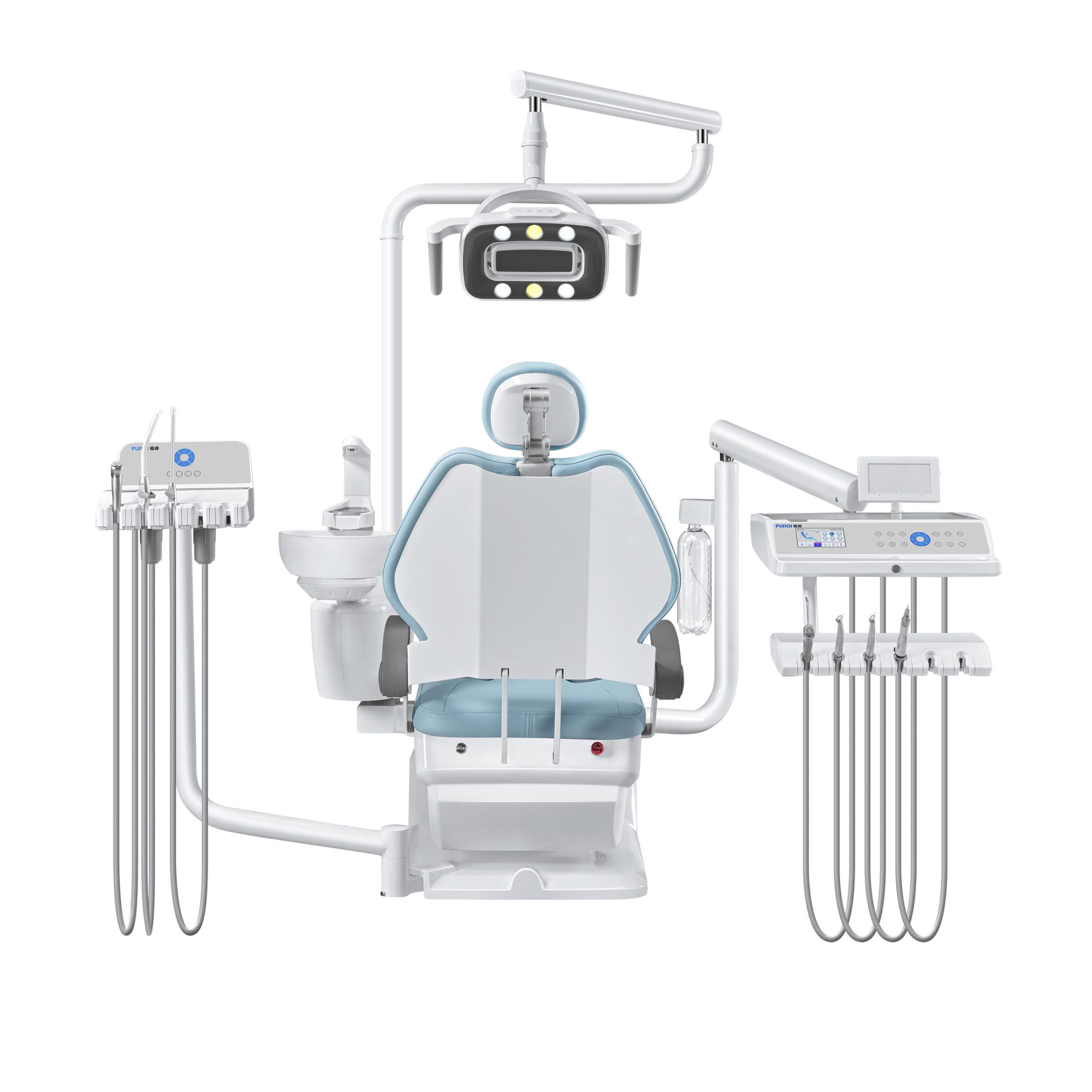

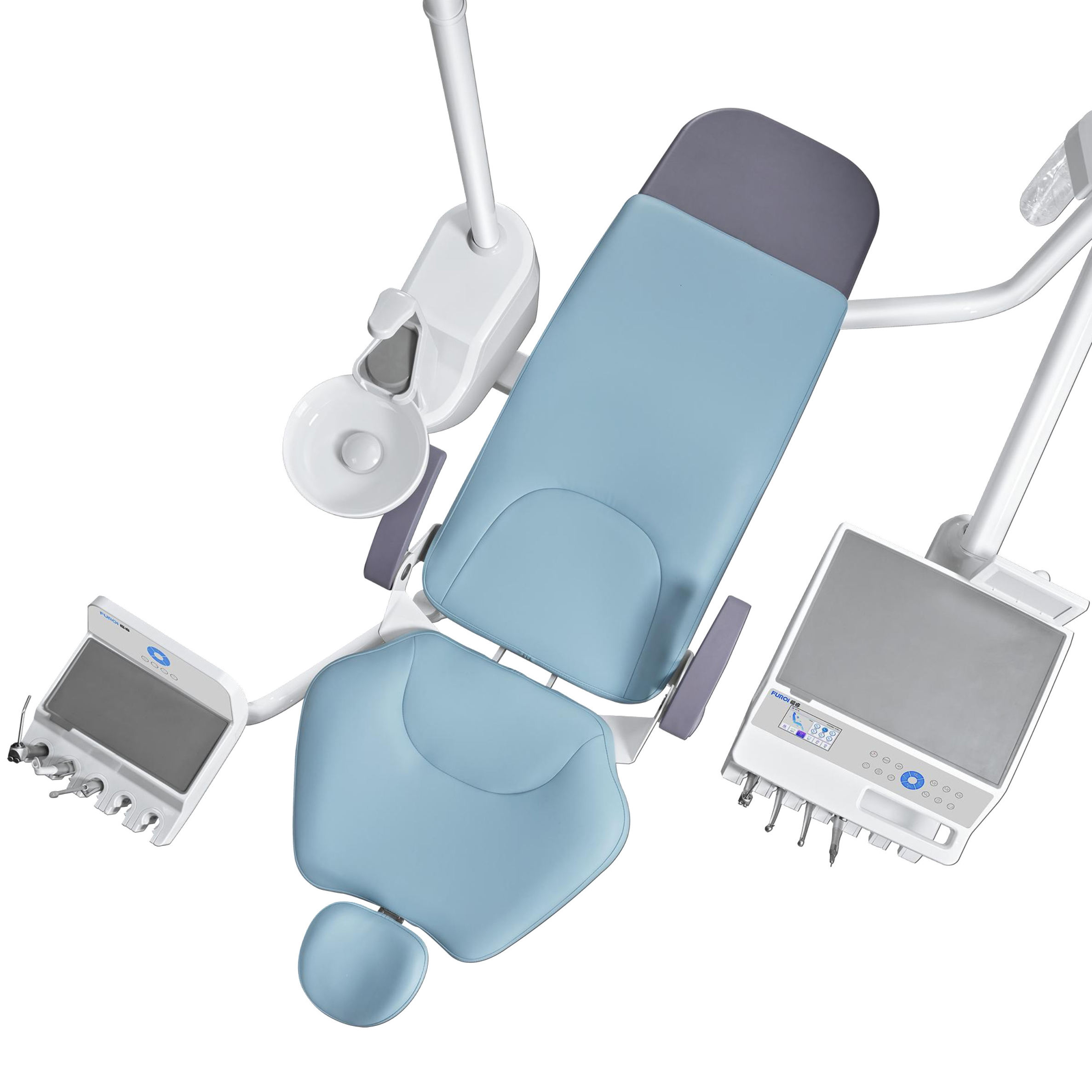

F03 Chair

CABINET INTEGRATED MODULE：

Integrated water hushing and heating system

Easy-o-remove electromagnafic heating core

FLOOR BOX INTEGRATED MODULE

Water/air control ball vakve (power-operated switch)

Adjustable integrated pressure reducer (water/air)

Easy-access filter (waste discharge]

INSTRUMENT INTEGRATED MODULE

Quick-detach handpiece tubing three-way syringe tubing. Integrated water/air debris control valve

Real-time digital air pressure display

Chair with itself lock function

MULTIFUNCTION FOOT PEDAL

Convenient control of the chair backrest lifting, pitching, one-key phlegm flushing and other functions.

HIGH QUALITY CERAMIC SPITTOON

Can be rotated inward 90 degrees.can be disassembled at will for cleaning and disinfection

SMART CONTROL PANEL

Real-time working status displary Multi-functional settings interface

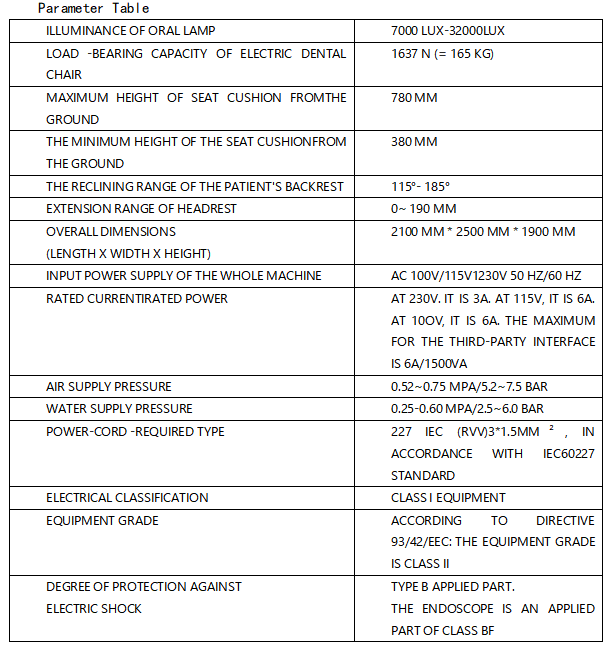

TECHNICAL PARAMETERS OF FUROI FR-3 SERIESDENTAL CHAIRS

Instrument Tray Arm

2440mmRotation angle of instrument tray arm:200°Vertical movement range:≥440 mm

Instrument Tray

Rotation angle of instrument tray:≥120°

Spittoon

Rotation angle of spittoon: 90°

Lamp Arm

Rotation angle of lamp arm:≥300°,Vertical movement range: ≥460 mm

Operating light

Rotation angle of operating light:≥270°

Auxiliary arm and Hanging box

Rotation angle of assist arm:90°,Rotation angle of hanger box: 30°

When the water pressure is 200 kPa, the vacuum degree of the weak saliva ejector shall be no less than 27 kPa, and the pumping rate shall be no less than 400 mL/min

When the air pressure is 400 kPa, the vacuum degree of the strong suction device should be no less than 10 kPa, and the pumping rate shall be no less than 1000 mL/min
