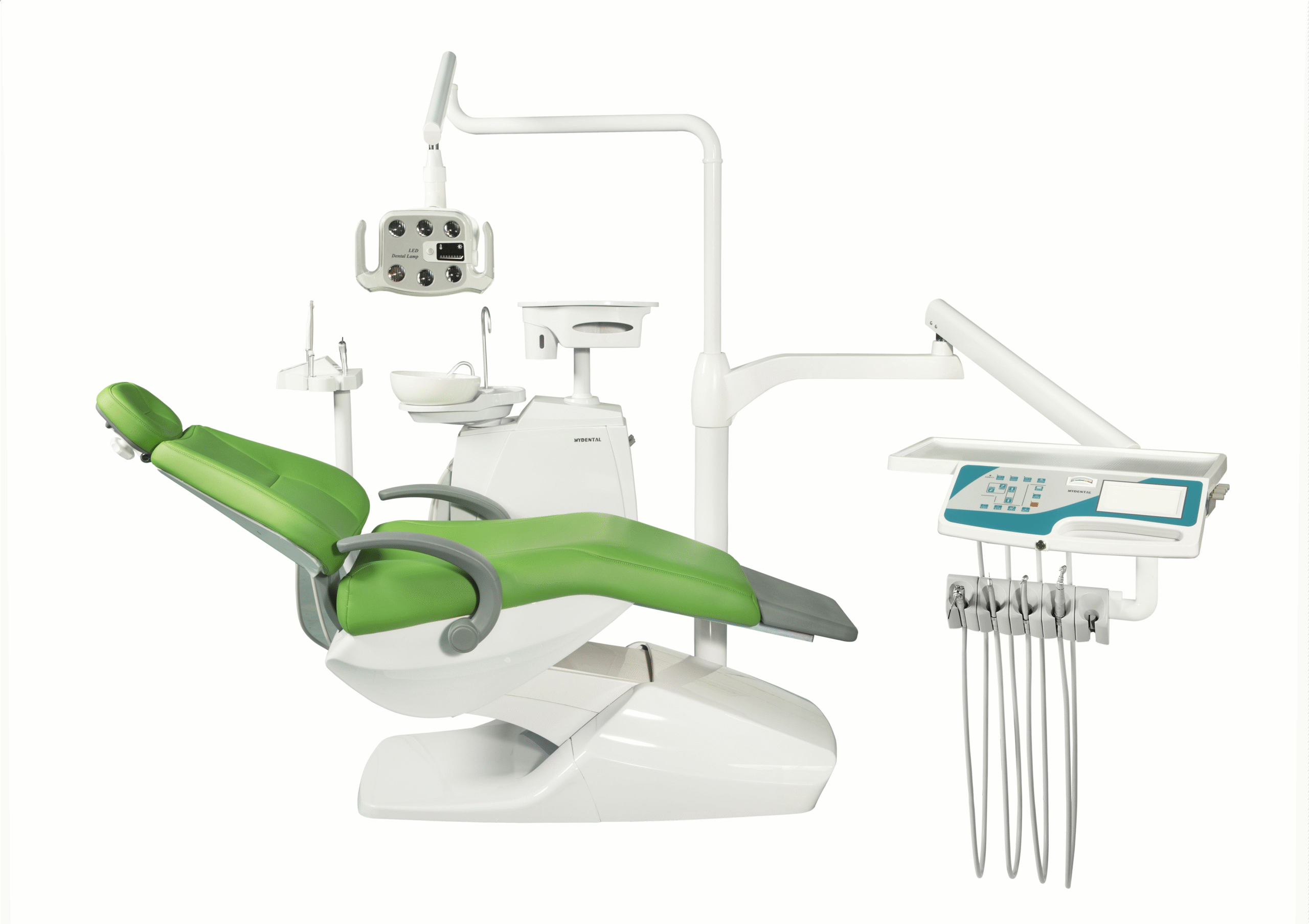

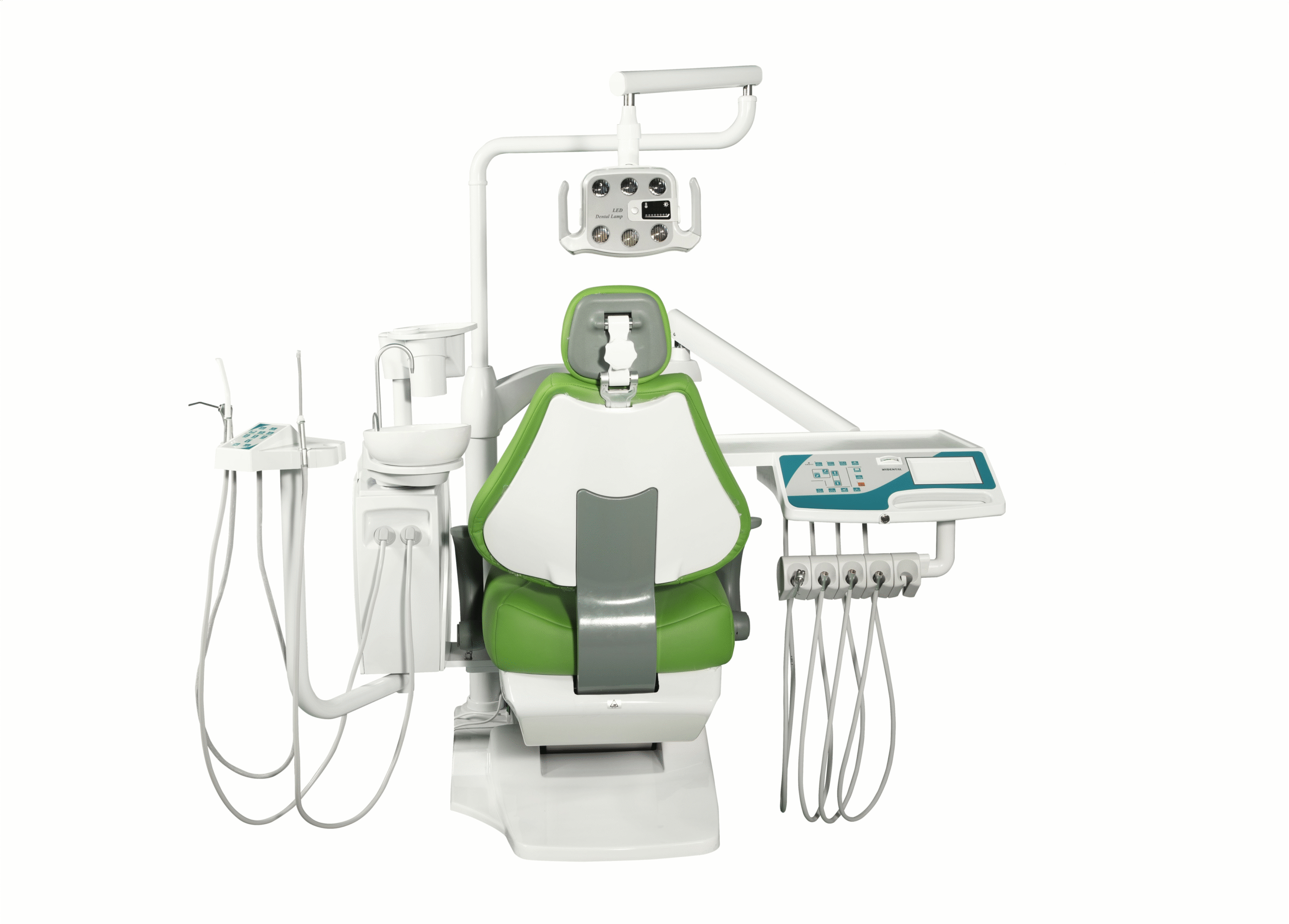

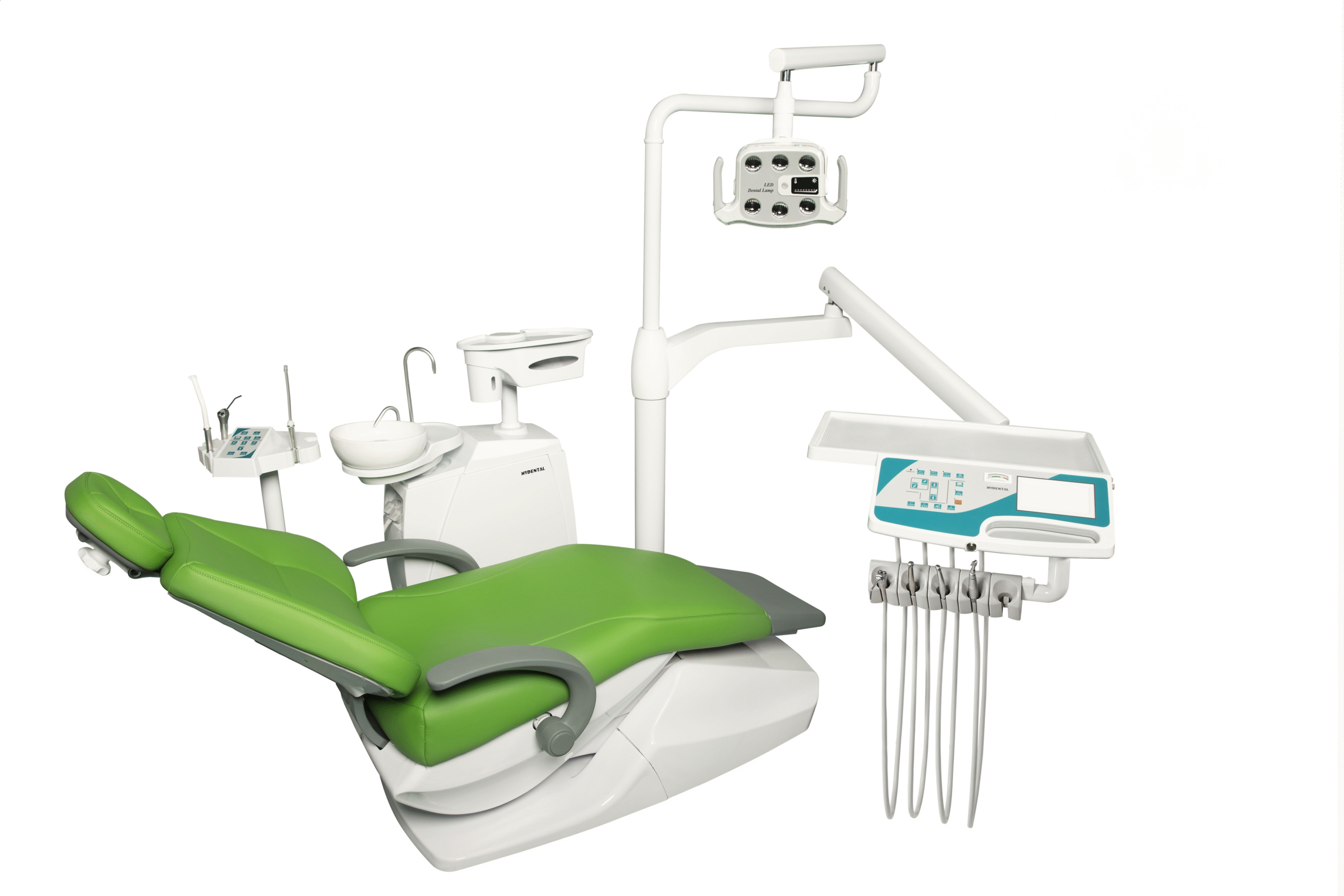

F01 Chair

Technical Parameters
Dental chair (cushion center): 390 mm ~ 640 mm
Rotation angle of backrest: -5°-75°
Rotation angle of instrument tray arm: 200°,Vertical movement range: ≥ 440 mm
Rotation angle of instrument tray:≥ 120
Rotation angle of spittoon: 90°
Rotation angle of lamp am: ≥ 300°,Vertical movement range: ≥ 460 mm
Rotation angle of operating light: ≥ 270°
Rotation angle of assist arm: 90°
Rotation angle of hanger box: 30°

Performance parameters
Operating light: illuminance>30000tx, colour temperature＞5500K
X-ray viewer:colour temperature＞9000K, brightness＞2000cd/m²
High vacuum suction: vacuum degree>16KPa, the flow＞1350MI/min
Saliva ejector: vacuum degree＞28KPa the flow＞1700MI/min
The flow of handpiece: the handpiece shall deliver a minimum water flow rate of 30 L/min and provide a torque exceeding 0.055 N·cm at 0.22 MP.

Advantage
①The new environment-friendly porcelain imitation case is corrosion resistant, easy to clean and no discoloration.
②Combination of three-in-one (paper cup,paper towel,storage tray)
③Floor column,make the whole machine more stable.
④Washable footrest.
⑤Soft and thick microfiber leather sofa,comfortable and soft
⑥Ultra-low seat for convenient treatment
⑦The armrest is related-rotated flip with backrest, and the right armrest can be rotated down.
⑧Yellow and white light operating light with detachable handle for cleaning and disinfection
⑨The spittoon, assistant arm and case can rotate, providing more space for four-hand operation.

Configuration Instructions
High elastic microfiber dental chair 1set
High vacuum suction and Saliva ejector system 1 set for each one
Three-way syringe(cold/hot) 1 piece for each one
LED operating light 1set
Low-voltage LED X-ray viewer 1set
Automatic bowl rinsing and cup filling 1set
Dental chair with 5 memory positions 1set
