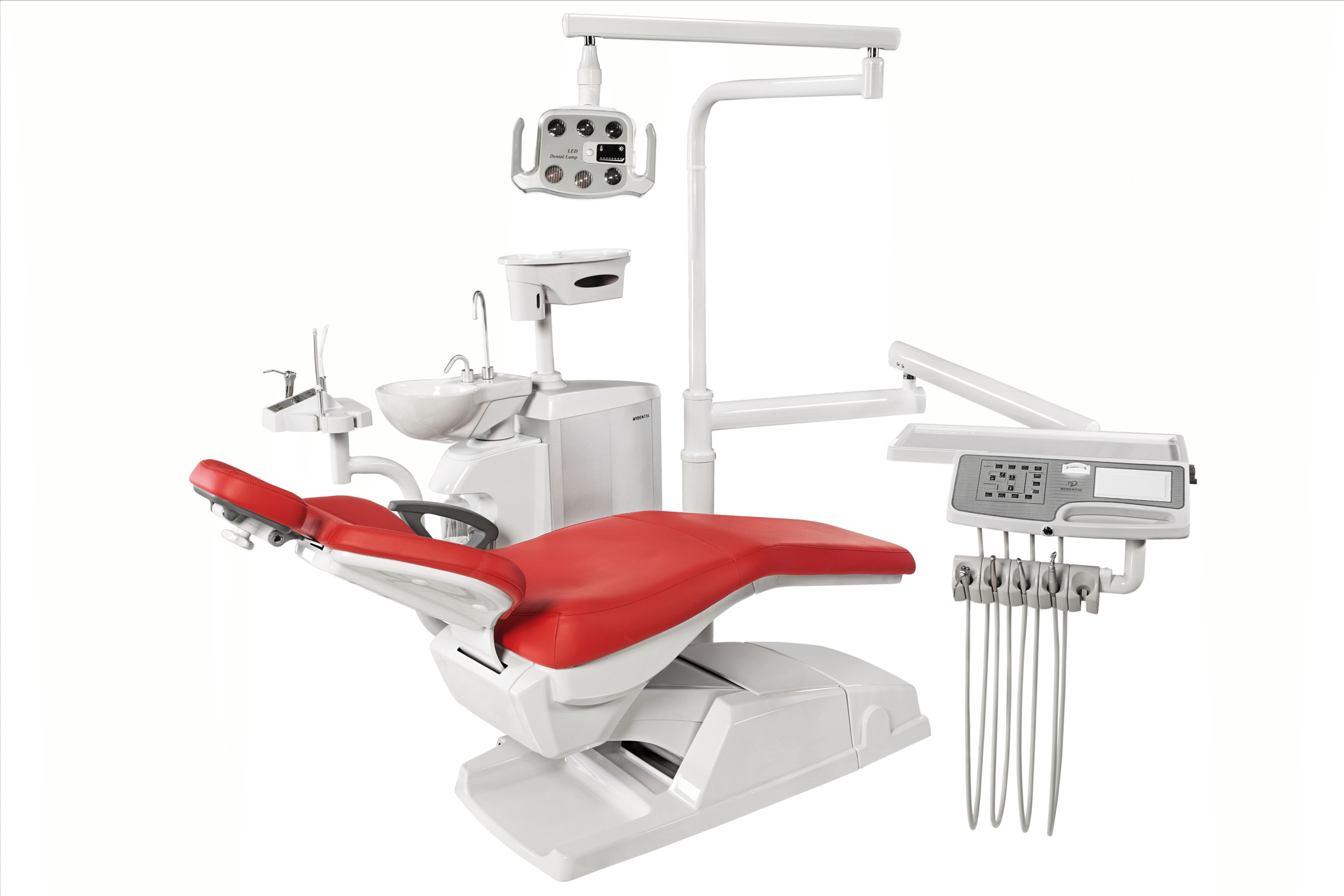

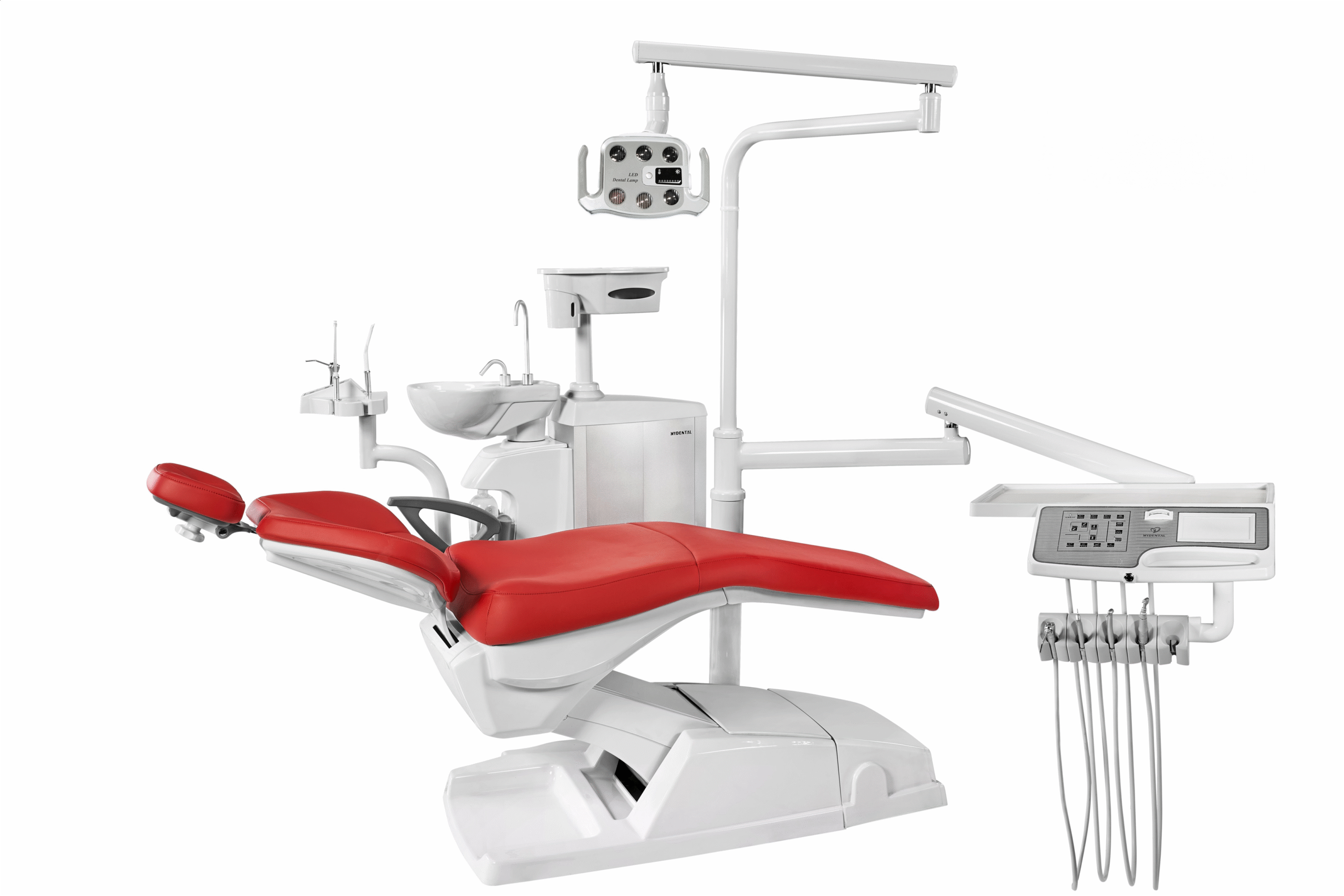

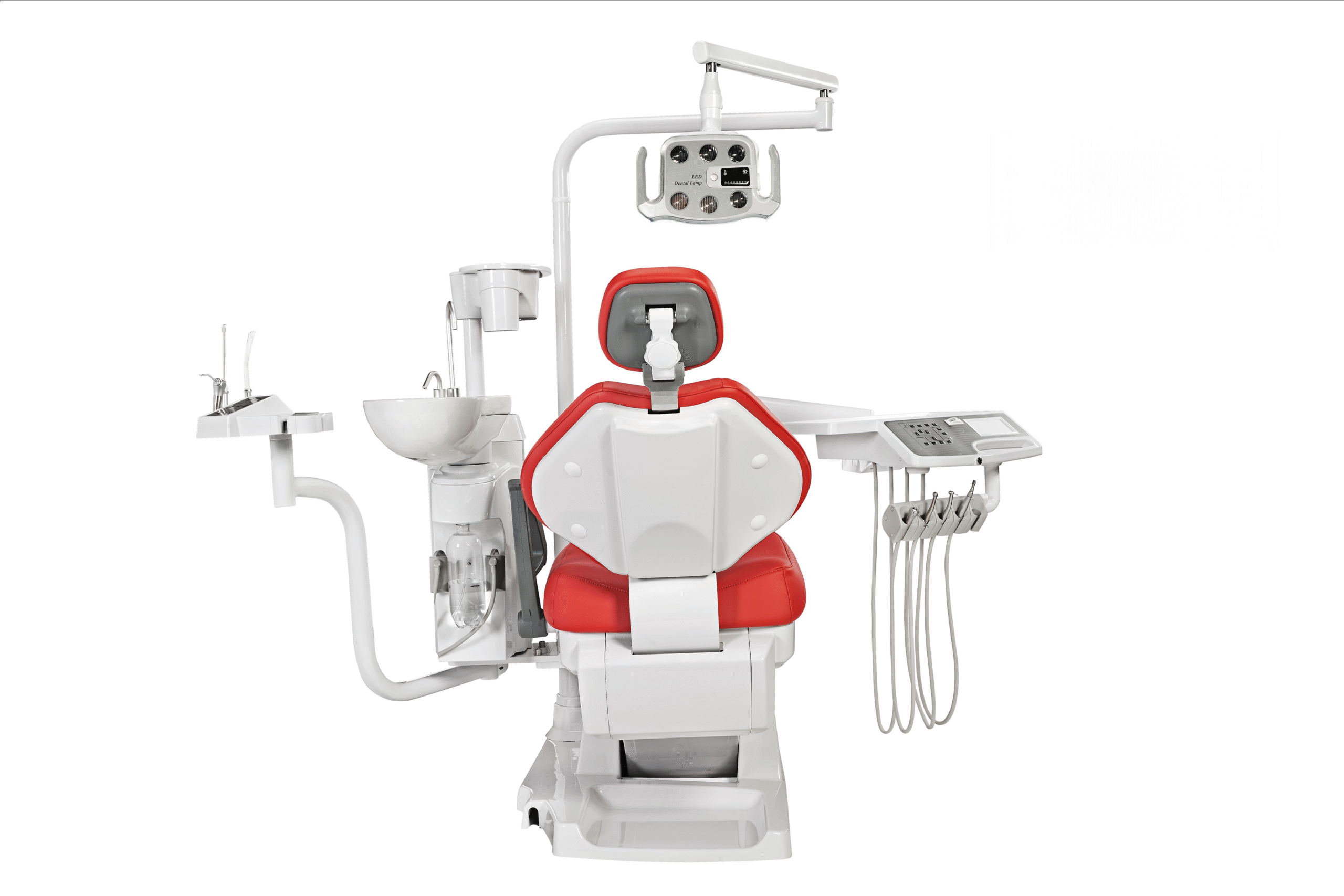

A01 Chair

Technical Parameters
Dental chair (cushion center): 370 mm ~ 640 mm
Rotation angle of backrest: -5°-75°
Rotation angle of instrument tray arm: 200°,Vertical movement range: ≥ 440 mm
Rotation angle of instrument tray:≥ 120
Rotation angle of spittoon: 60°
Rotation angle of lamp am: ≥ 300°,Vertical movement range: ≥ 460 mm
Rotation angle of operating light: ≥ 270°
Rotation angle of assist arm: 90°
Rotation angle of hanger box: 30°

Performance parameters
Operating light: illuminance>30000tx, colour temperature＞5500K
X-ray viewer:colour temperature＞9000K, brightness＞2000cd/m²
High vacuum suction: vacuum degree>16KPa, the flow＞1350MI/min
Saliva ejector: vacuum degree＞28KPa, the flow＞1700MI/min
The flow of handpiece: ≥ 30L/ min , torque＞0.055N·cm, while the indicated value is 0.22MP

Advantage
①Combination of tree-in-one (paper cup,paper towel,storage tray)
②Floor column,make the whole machine more stable.
③Internal and external floor boxes,flexible layout
④Ultra-low seat for convenient treatment
⑤Microfiber leather sofa,soft and wear-resistant
⑥The armrest is related-rotated flip with backrest
⑦The spittoon and assistant am can be rotated to facilitate four-hand operation
⑧Yellow and white light operating light with detachable handle for cleaning and disinfection

Configuration Instructions
Dental unit with microfiber 1set
High vacuum suction and Saliva ejector system 1 set for each one
Three-way syringe(cold/hot) 1 piece for each one
LED operating light 1set
Low-voltage LED X-ray viewer 1set
Automatic bowl rinsing and cup filling 1set
Luxury aluminum alloy side box 1set
Multifunctional tissue box 1set
Multi-function foot switch 1set
Luxury microfiber operator stool 1set
Dental chair with 5 memory positions 1set
High-speed handpiece connector 2sets
Low-speed handpiece connector 1set
24V DC mute motor 2PCS
Low-voltage DC mute motor 1set
